Wet wipe four side seal machine
Wet wipe four-side seal machine
application
Machine suitable for making and packaging wet wipes such as eyeglass cleaning wipes, feminine hygiene wipes, disinfectant wipes, makeup remover wipes, stain removal wipes, baby wipes, and alcohol pads. The four-side sealed packets are compact and convenient, making them popular with consumers and ideal for on-the-go use.
description

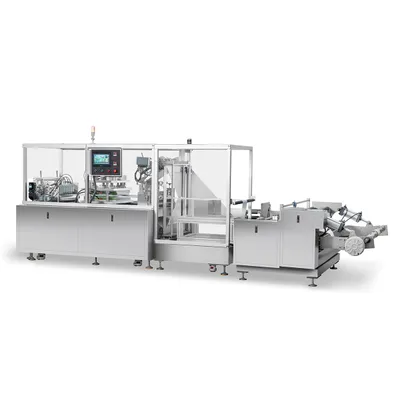

The fully automatic four-side seal wet wipes packaging machine is a next-generation equipment independently developed by our company. It integrates international technology for paper and non-woven packaging, responding to domestic and global market demands. The machine features a photoelectric-pneumatic integration design with centralized PLC motion control. It offers advanced technology, stable performance, and is among the most cutting-edge equipment for paper and non-woven packaging worldwide.
Features
- Non-woven fabric can be automatically slit into 3 cm and 6 cm widths, reducing the cost of cotton and non-woven material procurement for customers.
- Clear and precise four-side sealing with no white edges and accurate registration.
- Entire production line uses a motion control system, ensuring easy operation and stable performance.
parameter
| Model | ZP-W100 |
|---|---|
| Production Speed | 80–120 cuts/min (Wipe count = cuts × columns) |
| Total Power | Startup: 15 kW / Operation: 9 kW |
| Air Consumption/Pressure | ≥0.1 m³/min, 0.6–1.0 MPa |
| Power Supply | 220V / 380V, 50 Hz |
| Bag Size | Min width <30 mm, Max height <50 mm (customizable) |
| Packaging Material | Composite film, aluminized film, paper-aluminum film, paper-plastic film, etc. |
| Max Film Width | 800 mm |
| Non-woven Folding | Max 10 vertical folds, horizontal half/3-4 folds |
| Non-woven Material | 30–150 g/㎡ dust-free paper, non-woven, spunlace non-woven |
| Liquid Filling Range | 0–10 ml (varies by product size) |
