Tube sealer

Tube sealer

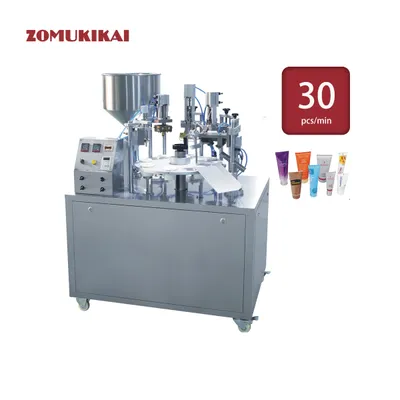

Semi-Automatic Tube Filler and Sealer

ModelZT-30P
ZT-30P Semi-Automatic Tube Filler and Sealer, suitable for plastic soft tubes, with a speed of 10–30 tubes/min, ideal for cosmetics, pharmaceuticals, and personal care industries.

turnkey solution

The ZT-30P is suitable for filling and sealing plastic soft tubes with products such as: • Cosmetic creams and gels • Pharmaceutical ointments • Toothpaste and oral care gels • Food sauces and pastes • Hand sanitizers and skincare products

video

Video thumbnail

description


The ZT-30P Semi-Automatic Tube Filler and Sealer is a compact and efficient machine specially designed for filling and sealing plastic soft tubes. It is widely used in industries such as cosmetics, pharmaceuticals, personal care, food, and chemical products. The machine features user-friendly controls, high filling precision, and reliable sealing performance—ideal for small to medium-scale production environments.


The machine integrates tube loading, orientation, filling, heating, sealing, and coding in one rotary system, providing consistent results while reducing manual labor.


MAIN FEATURES:



  • Suitable for plastic soft tubes
  • Piston-type filling system with adjustable volume (0–250ml)
  • Swiss LEISTER hot air sealing system for strong and clean sealing
  • Stainless steel contact parts for hygiene and corrosion resistance
  • Touch panel for simple operation and parameter adjustment
  • Quick changeover for different tube sizes
  • Compact footprint with smooth rotary working table
  • Optional jacketed hopper, mixer, chiller, and safety cover



With a production speed of 10–30 tubes per minute, the ZT-30P provides a cost-effective and professional solution for semi-automatic tube packaging lines.

parameter

ZT ModelZT-30R
Capacity10-30tubes/min
Tube materialAluminum-plastic composite tube and Plastic composite tube
Tube diameterΦ13- Φ50mm
Tube length50-210mm
Filling range5-250ml
