Tube Packaging Machine

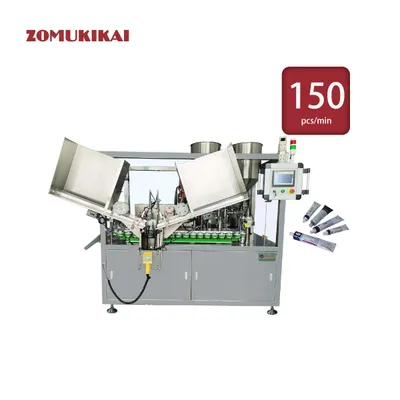

Servo-Driven Tube Packaging Machine
| Model | ZT-150A |
turnkey solution
The ZT-150A is a high-speed automatic tube filling and sealing machine, specially designed for filling metal aluminum tubes with a wide range of semi-viscous to viscous products. It is ideal for industries such as:
• Pharmaceuticals – ointments, gels, medicinal creams
• Cosmetics – facial creams, hair colorants
• Food – paste sauces, concentrated fillings
• Chemicals – adhesives, greases, and sealants
It supports filling volumes from 3–250g, and is suitable for various tube diameters and lengths.
video
description
The ZT-150A is engineered for high-speed, high-precision, and clean tube packaging, with an operational speed of 120–150 tubes per minute and a filling accuracy of ±1% (e.g., ±0.2g for a 20g tube). Key performance highlights include:
- Servo-driven dual-station rotary system, achieving stable and efficient continuous operation
- Advanced motion control system, synchronized by dual servo motors and cam-driven mechanisms
- No tube, no fill protection system with dual independent detection units
- Automatic tube feeding system using vacuum-assisted flip tray, holding over 1,500 tubes (20g)
- Anti-drip and anti-stringing blow-cut filling nozzles, designed for clean fills with minimal air entrapment
- Piston-type stainless steel pump with bottom-up filling movement to reduce splashing and bubbles
- Hot air sealing for plastic-laminated and full plastic tubes or folding and crimping for aluminum tubes
- Quick-release filling head, allowing fast cleaning with no product residue
- SIEMENS PLC, HMI, and electrical system for stable control and easy operation
- Banner sensors (USA) and AIRTAC pneumatic components (Taiwan) for precision and durability
- Equipped with automatic fault detection, alarm system, emergency stop, low-pressure shutdown, and servo overload protection
- Compliant with GMP standards, using wear-resistant sliding bearings and oil-free components above the worktable
The ZT-150A can operate independently or be integrated with cartoning and shrink-wrapping machines for a fully automated production line. Its advanced configuration, high speed, and clean design make it a top choice for demanding tube packaging environments.
parameter
| ZT Model | ZT-150A |
| Capacity | 120-150tubes/min |
| Tube material | Plastic tube |
| Tube diameter | Φ13- Φ50mm |
| Tube length | 50-210mm |
| Filling range | 5-250ml |
