Tube Filling Machine

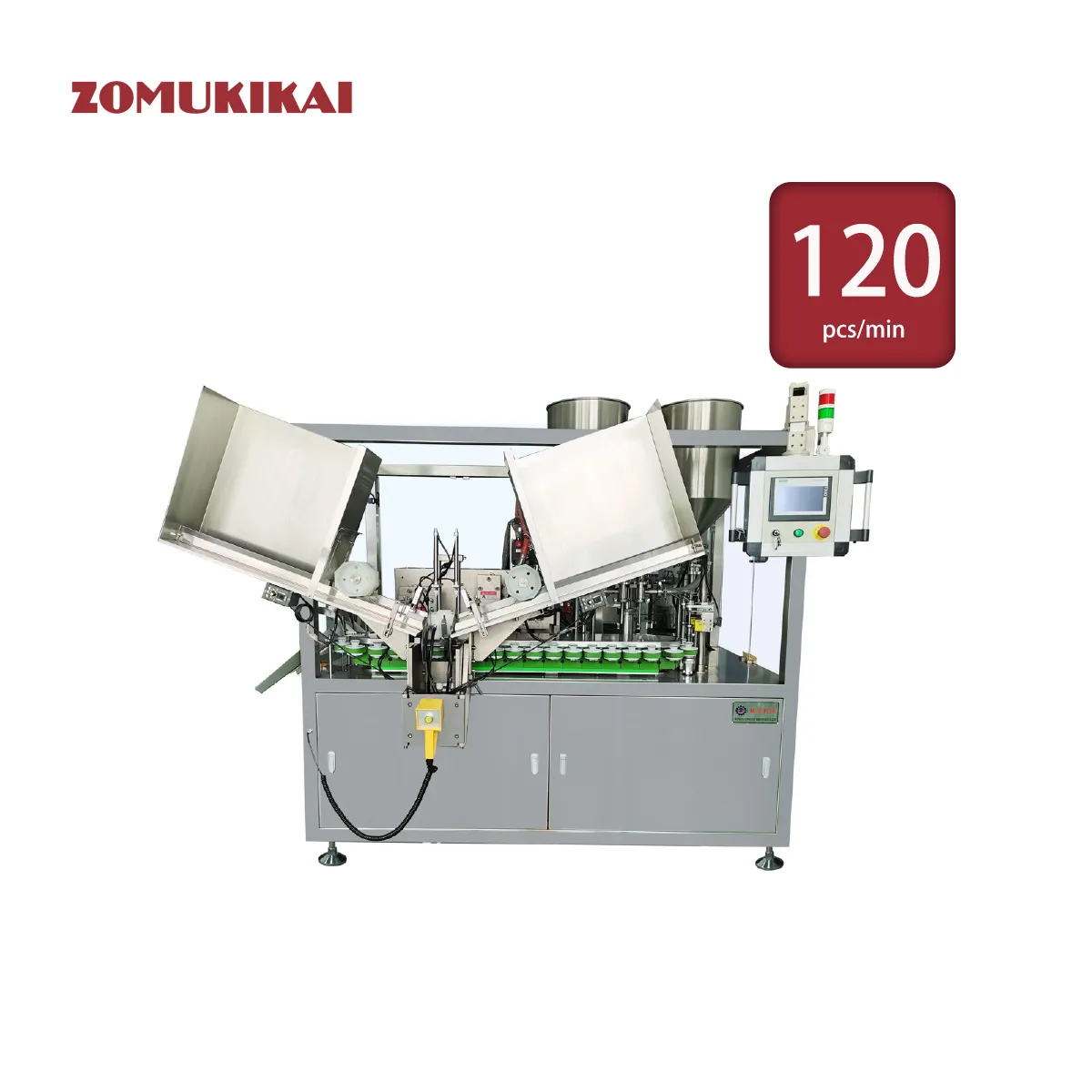

Plastic & Laminated Tube Filling Sealing Machine
| Model | ZT-120P |
turnkey solution
The ZT-120P Plastic & Laminated Tube Filling and Sealing Machine is a fully automatic high-speed system designed for the precise filling and sealing of plastic and laminated tubes. It is widely used across various industries such as:
• Cosmetics – creams, lotions, gels, sunscreens
• Pharmaceuticals – ointments, topical medications, gels
• Personal care – toothpaste, face wash, sanitizing gels
• Food – sauces, pastes, spreads
• Chemical products – adhesives, cleaning gels
Supports filling volumes of 5–180g, tube diameters of various sizes, and is especially suited for high-capacity operations with over 1500 tubes loadable in the hopper (for 20g tubes).
video
description
MAIN FEATURES:
The ZT-120P offers a maximum production speed of up to 120 tubes per minute, with normal working speeds ranging from 80–120 tubes/min, and filling accuracy of ±0.5%. Key features include:
- Dual-station rotary design for efficient filling and sealing
- Servo-controlled cam drive system for smooth and stable operation
- Advanced synchronous belt tube feeding with high precision and gentle handling
- Blow-off and cut-off filling nozzle design to prevent dripping and stringing
- Bottom-up filling to minimize splashing and reduce air bubbles
- Hot air sealing system with integrated embossing and tail trimming for clean, durable results
- No tube, no fill system with dual detection units
- Quick-change nozzle and pump assembly for easy cleaning and no product residue
- Adjustable fill volume via touch screen to compensate for product density differences
- SIEMENS PLC and touchscreen interface for intuitive operation and real-time parameter control
- Robust safety system with multiple protections including emergency stop, overload detection, low-pressure warning, and interlocked doors
The ZT-120P can operate as a standalone machine or be integrated into a fully automatic packaging line, working in conjunction with cartoning and shrink-wrapping machines to create a seamless production flow.
parameter
| ZT Model | ZT-120P | ZT-120A |
| Capacity | 80-120tubes/min | 80-120tubes/min |
| Tube material | Plastic tube | laminated tube |
| Tube diameter | Φ13- Φ50mm | Φ13- Φ50mm |
| Tube length | 50-210mm | 50-210mm |
| Filling range | 5-250ml | 5-250ml |
