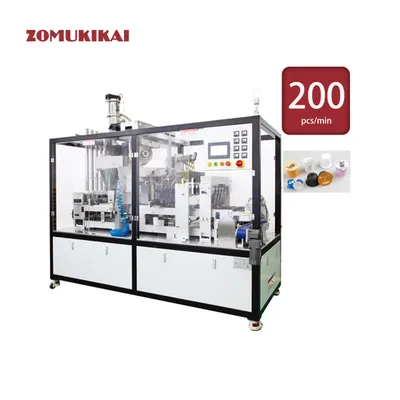

K-Cup Filling Sealing Machine
High-Speed Filling and Sealing Machine for K-Cup® Coffee Capsules
application
Machine is specially engineered for high-speed packaging of K-Cup® style coffee capsules, making it ideal for coffee producers seeking consistent, automated capsule filling and sealing. Beyond coffee, it is also suitable for packaging solutions in the cosmetics, pharmaceutical, and food sectors that require hygienic handling and GMP compliance.
• Designed for high-output K-Cup® coffee capsule production.
• Supports various small-cup packaging types with reliable sealing and dosing accuracy.
• Suitable for food-grade powders, cosmetic creams, and pharmaceutical granules.
• Fully meets GMP, safety, and environmental regulations.
• Ideal for manufacturers prioritizing precision, automation, and cleanroom compatibility.
video
description
The CCM240 Multi-Lane Linear Filling and Capping Machine is a robust, fully automatic system optimized for the efficient production of K-Cup® compatible capsules（K-Cup® pods）. With an integrated process covering cup feeding, product dosing, film application, and lid placement, it delivers superior consistency and productivity with minimal operator involvement.
Core Advantages:
- High throughput: Processes up to 10,000 capsules per hour, achieving speeds of 160–200 cups per minute depending on product characteristics.
- End-to-end automation: Handles cup loading, filling, film sealing, and capping in a continuous cycle for maximum efficiency.
- Intelligent controls: Features an advanced PLC system and touchscreen interface for seamless operation and real-time diagnostics.
- Reliable componentry: Incorporates over 95% internationally branded parts, including Schneider and Omron, ensuring long-term stability.
- Hygienic and ergonomic: Separates mechanical and packaging areas to simplify cleaning and meet hygiene standards.
- Built-in safety protocols: Includes automatic rejection of faulty capsules and auto-stop for overload protection.
- Flexible design: Molds and configurations can be customized to accommodate different K-Cup® sizes and sealing materials.
parameter
| ZC Model | ZC-CCM240 |
|---|---|
| Productivity | Stable output: 10000 capsules/hour |
| Cup Size (Diameter × Height) | Ø37–54 mm × H28–50 mm |
| Sealing Film Diameter | Ø37–54 mm |
| Power Supply | Single Phase 220V |
| Main Motor Power | 0.75 KW |
| Total Power | 15 KW |
| Air Pressure | 0.6–0.8 MPa |
| Air Consumption | 0.4 m³/h |
| Noise Level | <70 dB |
| Machine Weight | 2000 kg |
| Automation | Automatic waste rejection, auto-stop on overload |
