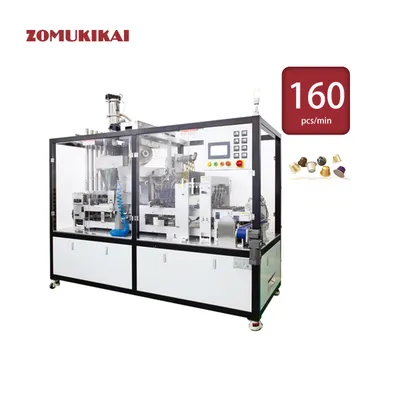

Coffee Capsule Packaging Machine
Coffee Capsule Packaging Machine with Multi-Lane System
application
video
description
This fully automatic coffee capsule packaging system operates on a four-lane linear platform, allowing up to 160 capsules per minute.
The process includes automatic cup feeding, high-precision coffee dosing, effective dust extraction, and sealing with either pre-cut foil or roll film.
The structure is designed with separation between transmission and packaging zones to improve hygiene and maintenance access.
Intelligent PLC control, a large touchscreen interface, and integrated fault detection systems offer real-time performance monitoring and simplified user operation.
With premium brand components and compliance with GMP and safety standards, this machine delivers high efficiency, stable operation, and long-term reliability for intensive production environments.
parameter
| ZC Model | ZC-CCM240 |
|---|---|
| Productivity | Stable output: 10000 capsules/hour |
| Cup Size (Diameter × Height) | Ø37–54 mm × H28–50 mm |
| Sealing Film Diameter | Ø37–54 mm |
| Power Supply | Single Phase 220V |
| Main Motor Power | 0.75 KW |
| Total Power | 15 KW |
| Air Pressure | 0.6–0.8 MPa |
| Air Consumption | 0.4 m³/h |
| Noise Level | <70 dB |
| Machine Weight | 2000 kg |
| Automation | Automatic waste rejection, auto-stop on overload |
