Coffee Capsule Capping Machine
Dual-Head Rotary Coffee Capsule Filling Capping Machine
application
Machine is designed for high-speed filling and sealing of coffee capsules. It is ideal for Instand coffee (saturnbird coffee) capsules and similar formats in the food, pharmaceutical, and freeze-dried powders in cosmetics cosmetics industries. It handles various cup sizes and is also suitable for filling powdered products such as tea powder, health supplements, probiotics, and functional powders.
video
description

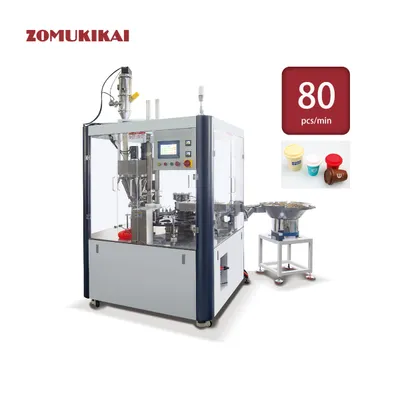

The CCM140 is a fully automatic dual-head rotary capsule filling and capping machine developed to meet modern market demands for efficient and hygienic capsule packaging. It integrates automatic cup dropping, accurate dosing, film sealing, and lid capping in one continuous process. Designed with a rotary indexing system, the machine features two synchronized filling heads for improved throughput and precision.
Machine Features:
- Complies with current GMP standards and China’s safety and environmental regulations.
- Hygienic structural design with complete separation between drive and packaging zones for easy cleaning and maintenance.
- High automation level with multiple monitoring points and automatic shutdown in case of faults.
- High-speed performance: stable output of 80–120 capsules/minute (subject to product characteristics), operated by just one person.
- Equipped with advanced electrical components from renowned international brands (95% imported).
- PLC programmable control with touchscreen HMI for intuitive operation.
- Custom mold design available to accommodate various capsule sizes and formats.
- Integrated automatic waste rejection system and overload protection for safe operation.
parameter
| ZC Model | ZC-CCM140 |
|---|---|
| Productivity | Stable output: 5000 capsules/hour |
| Cup Size (Diameter × Height) | Ø37–68 mm × H28–50 mm |
| Sealing Film Diameter | Ø37–68 mm |
| Power Supply | Single Phase 220V |
| Main Motor Power | 0.75 KW |
| Total Power | 7 KW |
| Air Pressure | 0.6–0.8 MPa |
| Air Consumption | 0.4 m³/h |
| Noise Level | <70 dB |
| Machine Weight | 1200 kg |
| Automation | Automatic waste rejection, auto-stop on overload |
