aluminum tube filling machine

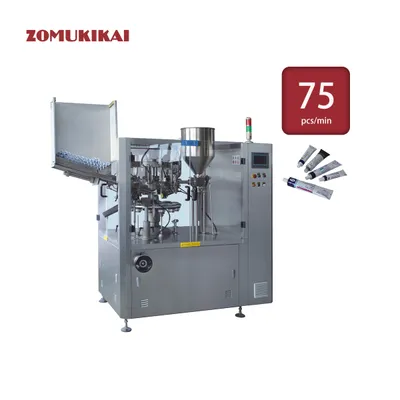

Aluminum Tube Filling Crimping Machine
| Model | ZT-80A |
turnkey solution
The ZT-80A is a fully automatic filling and crimping machine designed specifically for metal aluminum tubes. It is widely used in industries requiring precise and hygienic packaging of viscous or semi-viscous products, such as:
• Pharmaceuticals: ointments, creams, gels
• Cosmetics: hair color creams, facial masks
• Industrial: adhesives, lubricants, sealants
• Food: pastes and sauces in aluminum tubes
It supports aluminum tubes with diameters from 13 to 50 mm and lengths up to 210 mm, with filling volumes ranging from 5 to 250 ml.
video
description
The ZT-80A delivers reliable high-speed performance with a maximum capacity of 75 tubes per minute, making it suitable for large-scale production. Its performance features include:
- 12-station rotary working table for continuous tube processing
- Automatic functions: tube feeding, positioning, filling, tail folding (crimping), batch coding, and discharging
- Mechanical folding system ensures tight, leak-proof and uniform crimping
- High-precision photoelectric eye (accuracy < 0.2 mm) for accurate tube positioning
- SIEMENS PLC and touch screen interface for programmable control and user-friendly operation
- All contact parts made of 316L stainless steel, fully compliant with GMP standards
- Integrated safety systems: alarm and auto-stop for low air pressure, tube errors, or door opening
- Batch number embossing included (with manufacturing date option)
The ZT-80A combines speed, precision, and strong seal integrity, making it an ideal solution for manufacturers using aluminum tubes in demanding applications.
parameter
| ZT Series | ZT-80A |
| Capacity | 50-75tubes/min |
| Tube material | Plastic/laminated tube |
| Tube diameter | Φ13- Φ50mm |
| Tube length | 50-210mm |
| Filling range | 5-250ml |
